Architecture

This page provides an overview of the general architecture of the project, explaining how the custom resources work together to manage game servers in a Kubernetes environment.

Custom Resources

The project implements four main custom resources to manage game servers:

Resource Overview

  • Server: A Server is a wrapper for a Kubernetes pod with added logic, typically through a sidecar.
  • Fleet: A Fleet manages the creation and deletion of multiple servers, ensuring scaling and resource management for a group of servers.
  • GameType: A GameType manages one or two fleets and is responsible for updating the configuration of servers, enabling gradual upgrades.
  • GameAutoscaler: A GameAutoscaler triggers scaling actions based on external logic, calling a webhook implemented by the user to adjust the replica count of the GameType.

Resource Relationships

The resources in this project are closely interconnected. Here's how they relate:

  • GameAutoscaler scales a GameType based on external inputs (via webhook).
  • GameType creates and updates Fleets based on its configuration.
  • Fleets manage the creation and deletion of Servers.
  • Servers manage individual Pods.

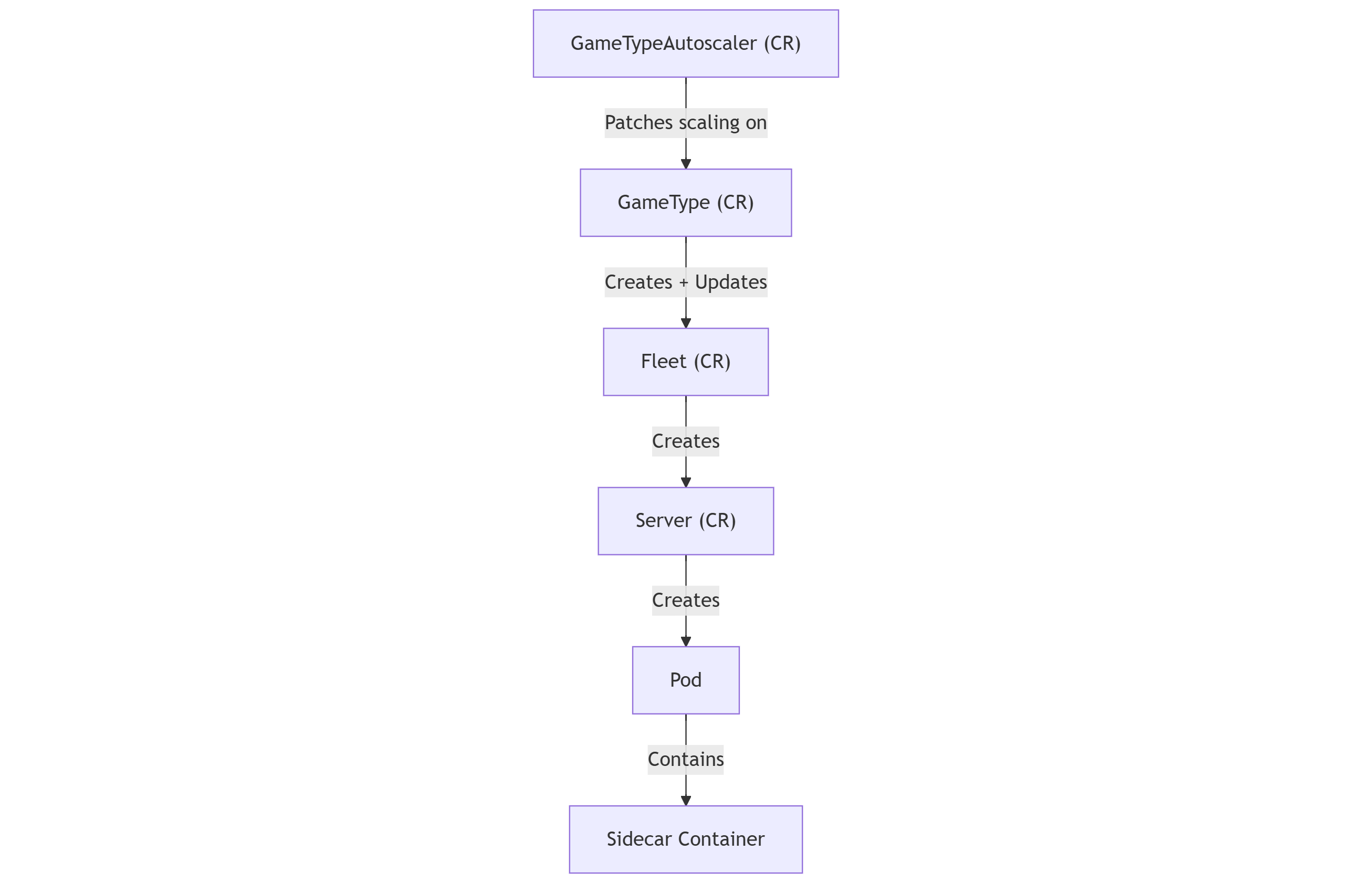

This relationship can be visualized in the following diagram:

Object Relations

Server Deletion Blocking

The blocking of server deletion is a critical aspect of this system. It ensures that a server is not deleted until all conditions for safe deletion are met.

This is achieved through the use of finalizers. When a new Server object is created, the controller automatically adds a finalizer. The finalizer ensures that the server cannot be deleted until the associated sidecar reports that deletion is allowed.

The process is as follows:

  1. A finalizer is added to the Server object upon creation.
  2. The Sidecar (detailed in Sidecar) monitors the server and reports when deletion is allowed.
  3. Only once the sidecar confirms that deletion is allowed will the finalizer be removed, and the Server can be deleted.

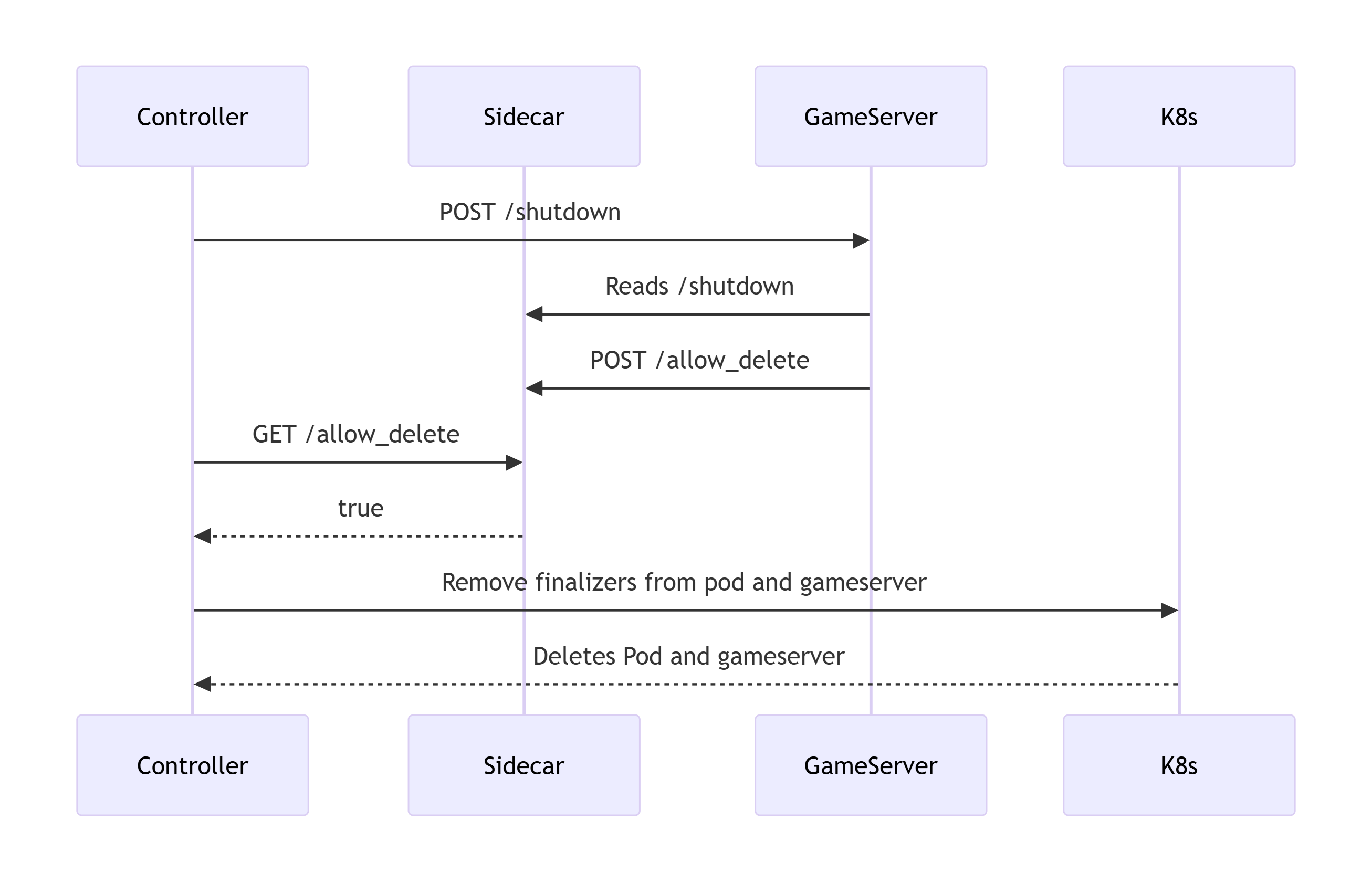

The flow of communication between components can be seen in the following diagram:

General Communication
